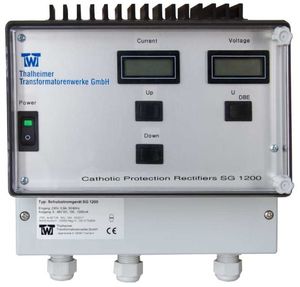

Kathodic Current Rektifiers SG100, SG350, SG700 und SG1200

Advantages:

  • Protection class 100 mA, 350mA, 700mA and 1200mA selectable
  • Protection current setting digital in 100 steps possible
  • Automatically regulating constant current
  • Interface for remote monitoring and parameterization (for example, Weilekes Minitranssystem)
  • Surge protection at the output
  • Terminals for clock relays available
  • Digital measurement of the current, the voltage and the permanent reference electrode
  • Integrated temperature and short circuit protection
Technical Data and Overview
Technical Data SG100 SG350 SG700 SG1200
Approbation CE, EN61000-6-3, EN61010-1 CE, EN61000-6-3, EN61010-1 CE, EN61000-6-3, EN61010-1 CE, EN61000-6-3, EN61010-1
Operating voltage 90...264 AC;
47...63 Hz		 90...264 AC;
47...63 Hz		 90...264 AC;
47...63 Hz		 90...264 AC;
47...63 Hz
Energize max. VA max. 22 VA max. 43 VA max. 73 VA
Output current range mA DC 30...350mA DC 60...700mA DC 100...1200mA DC
Output voltage max. 42V DC max. 42V DC max. 42V DC max. 42V DC
Adjustable current steps 100 100 100 100
Switching threshold - potential-free
alarm relay		 30mA 30mA 60mA 100mA
Monitoring Relay contact-
output;
potential free		 Relay contact-
output;
potential free		 Relay contact-
output;
potential free		 Relay contact-
output;
potential free
Switching current of the fault relay min. 1 mA at 5 V DC, max. 1 A at 24 V DC min. 1 mA at 5 V DC, max. 1 A at 24 V DC min. 1 mA at 5 V DC, max. 1 A at 24 V DC min. 1 mA at 5 V DC, max. 1 A at 24 V DC
Connection max. 2,5 mm² 2,5 mm² 2,5 mm² 2,5 mm²
Mass 1,4 kg 1,4 kg 1,4 kg 1,4 kg
Protection degree IP54 IP54 IP54 IP54
Ambient temperature -20 °C up to +40°C -20 °C up to +40°C -20 °C up to +40°C -20 °C up to +40°C
Storage temperature -20 °C up to +80°C -20 °C up to +80°C -20 °C up to +80°C -20 °C up to +80°C
Dimension Housing (222 x 180 x 107) mm (222 x 180 x 107) mm (222 x 180 x 107) mm (222 x 180 x 107) mm
Befestigung Wandmontage Wandmontage Wandmontage Wandmontage
