Remote Monitoring Rectifiers SG

Operating Permanent operating
Design Transformer According to EN 61558
Rectifier According to VDE 0558 Teil 1
Load reduction 5%/k above tmax
Approbation CE



Selection Remote Monitoring Rectifiers
Type Nominal Input Voltage Nominal Current Consumption Output D.C. Voltage Ripple Output Voltage max. Output Current Operational Temperature Dimensions B x H x T Mass
  230 6,3 0 ... 48 <48 20 -20 ... +40 375 x 385 x 242 36
  V A V % A   mm kg
Output Voltage finely graduated clamp fitting
SG 001T12/... (mA) 230 0,16 0 ... 12 <48 1; 0,5; 0,1 2) -20 ... +60 165 x 150 x 95 1,3
SG 001T20/... (mA)     0 ... 20   0,5; 0,1 2)
SG 001R10/... (mA) 230 0,16 0 ... 10 <48 1; 0,5; 0,1; 0,02 -20 ... +60 213 x 180 x 105 2
SG 001R20/... (mA)     0 ... 20   0,5; 0,1; 0,02
Output Voltage stepless controlable
SG 001R/K (mA) 230 0,16 0 ... 10 <48 0 ... 1 -20 ... +60 230 x 320 x 115 3
      0 ... 20   0 ... 0,5

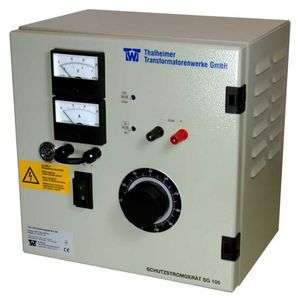

SG 105   0,9 0 ... 24   5   300 x 340 x 240 9
SG 110 SG 110/F SG 120 230 1,6 0 ... 24 <48 10 -15 ... +50 300 x 340 x 240 11
    2 0 ... 28   10 -20 ... +40 400 x 640 x 240 42
    6,3 0 ... 48   20   400 x 640 x 240 38
SG 40/10 SG 220 230 2,2 0 ... 40 <48 10 -20 .. +40 428 x 232 x 225 19

Types Overview



SG 001 / T

  •     Affordable device with simple equipment
  •     Preferably for filling station installations
  •     Output voltage up to 12/20 V DC can be clamped finely
  •     Protection current: 100, 500 mA
  •     1000 mA at 12 V
  •     Protection class II, degree of protection IP54

 SG 001 / R

  •     Protective current rectifier of low power for well insulated pipelines
  •     Output voltage up to 10/20 VDC can be clamped finely
  •     Protection current 20, 100, 500 mA (1000 mA only up to 9 V)
  •     Possibility to measure the permanent reference electrode voltage
  •     Electronic current limitation
  •     Threshold reset
  •     lightning protection
  •     Protection class II, degree of protection IP54

 SG 001 / P

  •     Technical parameters such as SG 001 / R, but increased overvoltage protection
  •     Protection module APD, self-disconnecting UDBE measurement with varistor protection
  •     Protection current 20 mA or 100 mA

 SG 001R / K, SG 105, SG 110, SG 40/10, SG 220

  •     Continuously adjustable output voltage
  •     Voltage indicator switchable to measure the
  •     Subscribe electrode voltage
  •     Overvoltage protection
  •     Protection class I, degree of protection IP20

 SG 110F

  •     MINITRANS remote monitoring controllable
  •     Output voltage adjustable in 56 steps
  •     Adjustment via PLC and control module
  •     Output current limitation
  •     On-site operation

 SG 120

  •      Continuously adjustable output voltage
  •     Voltage indicator switchable to measurement of the permanent reference electrode voltage
  •     Overvoltage protection
  •     inrush
  •     Protection current monitoring with operating hours counter
  •     Remote monitoring possible
  •     Protection class I, degree of protection IP 20

Further equipment features can be fulfilled upon request / customer specification
