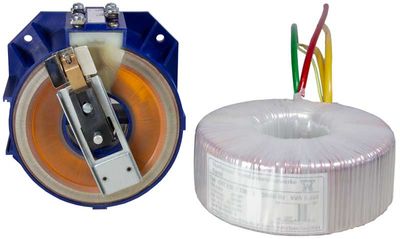

Isolating Auto Transformer Unit TSE
Advantages TSE:
- Galvanic separation and auto transformer in one design
- Additional with toroidal transformator
- Small size
- Long lifetime
- Variety of applications possible
- Ready to install
Selction Isolating Auto Transformer TSE
1. Choose Input and Output voltage
2. Choose needed current via selection
3. For dimensions click on type
Selection Isolating Auto Transformer Units TSE
| Type | Input voltage V |
Input current A |
Output voltage V |
Output current in A |
ESS Type | ERT ∅ in mm | ERT high in mm | Mass in kg |
|---|---|---|---|---|---|---|---|---|
| TSE 002 | 230 | 2,3 | 2...250 | 1,6 | ESS 102 | 150 | 60 | 4,0 |
| TSE 004 | 230 | 5,5 | 2...250 | 4,0 | ESS 104 | 180 | 80 | 8,8 |
| TSE 006 | 230 | 8,0 | 2...250 | 6,0 | ESS 106 | 200 | 80 | 10,5 |
| KTS 103 | 230 | 8,0 | 1...42 | 2,5 | ESS xxx | 80x96 | 60 | 4,6 |
General Technical Data
| Protective degree | IP 00 |
| Isolation class | B |
| Maximum Ambient temperature | +40°C |
| Test voltage shaft - winding | 4 kV |
| Frequenzy | 50/60 Hz |
| Nominal Input voltage | 230 V |
| Output voltage TSE | <2...250V |
| Output voltage KTS | <1...42V |
| Altitude | 1000 m |
| Aprobation | CE, RoHs |
